Unsere Silos
- produziert in Ost-Deutschland -
Our silos
- produced in East Germany -

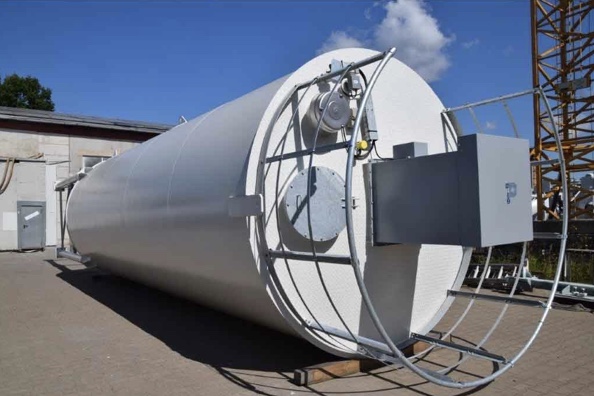

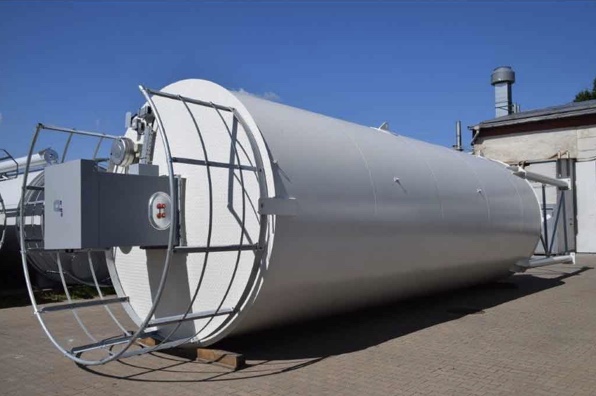

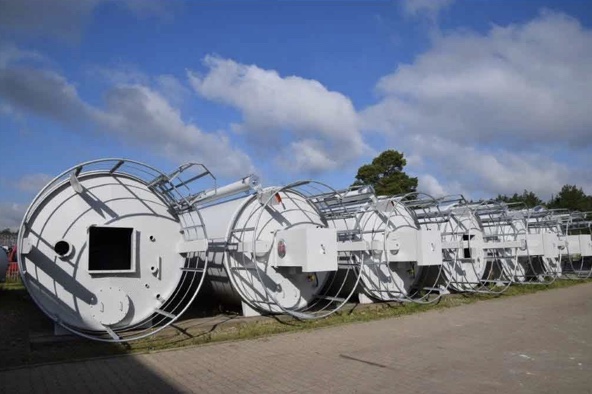

Stahlblechsilo einzellig,(Doppelkammer auf Anfrage)
zur Lagerung von Zement
Silo Durchmesser: 2900
Konus Höhe: ca. 60°
Auslaufdurchmesser: NW 300
Ausrüstung/ Einbauten für Einkammersilo :
Einfüllleitung innen-/ oder außenliegend mit Flansch
Kabelleerrohr innen-/ oder außenliegend
Kontrollöffnung im Silodach
Filterzarge für Jetfilter Silotop Zero
Brechkegel innen fest im Auslaufbereich
Wasserabweisring außen am Konus
Dachrandgeländer
Kranösen am Silodach und Kranösen am Silomantel
Oberflächenbehandlung : Sämtliche Siloaußenflächen Strahlentrostet SA 2,5; 1 x Grundbeschichtung ca. 60 µm;
1 x 2K Deckbeschichtung 40 µm RAL 9002; Sillo Innenflächen unbehandelt besenrein
Aufstiegsleiter oder Übergangssteg von Silodach zu Silodach mit Geländer in feuerverzinkt
EX-Implo Ventil NW300,
Silo-Absperrklappe NW300 mit Handhebel
elektrische Silofüllmeldeanlage für Bindemittel mittels an einem Stahlseil geführten Mikrowellenimpulsen
(Radar am Seil)
Polypleafilter SILOTOP D= 800 mm
Silo Druckmelder
Silo-Überfüllsicherung für eine Silokammer
Luftauflockerung
Kabelpaket zur Verkabelung aller Verbraucher
techn. Unterlagen bestehend aus Übersichtszeichnung, Statikund Transportzeichnung
Single-chamber steel silo (double chamber available upon request)
for cement storage
Silo diameter: 2900
Cone height: approx. 60°
Outlet diameter: NW 300
Equipment for single-chamber silo:
Filling line inside or outside with flange
Cable routing inside or outside
Inspection opening in the silo roof
Filter frame for Silotop Zero Jet Filter
Crushing cone attached inside the outlet area
Water deflection ring outside the cone
Roof edge railing
Crane eyes on the silo roof and silo shell
Surface treatment: All silo exterior surfaces blasted to SA 2.5; 1 x primer coat approx. 60 µm;
1 x 2K top coat 40 µm RAL 9002; silo interior surfaces untreated, swept clean
Access ladder or transmissions bridge from silo roof to silo roof with railing, hot-dip galvanized
EX-Implo valve NW300,
Silo gate valve NW300 with hand lever
Electric silo level detection system for binding agents using microwave pulses guided on a steel cable
(radar on the cable)
SILOTOP polyplea filter D = 800 mm
Silo pressure detector
Silo overfill protection for one silo chamber
Air aeration system
Cable package for wiring all devices
Technical documentation consisting of an overview drawing, structural drawing, and transport drawing

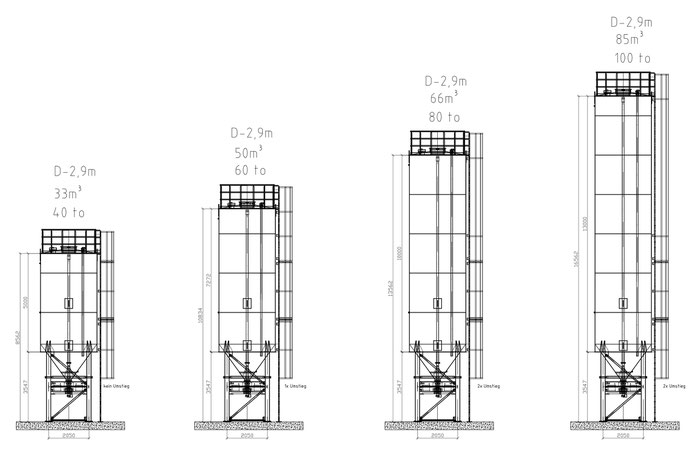

....Oder unsere Silos in der preisgünstigen Klasse (gefertigt in Rumänien) in den 2 Größen:
....Or our affordable silos (manufactured in Romania) in two sizes:
ca./approx. 80m3/100to
ca./approx. 65m3/80to
Als Beispiele, Details für ein
ca. 80to bzw. 100to Silo
(unsere Bestseller)
ca. 65m3/ ca. 80 to:

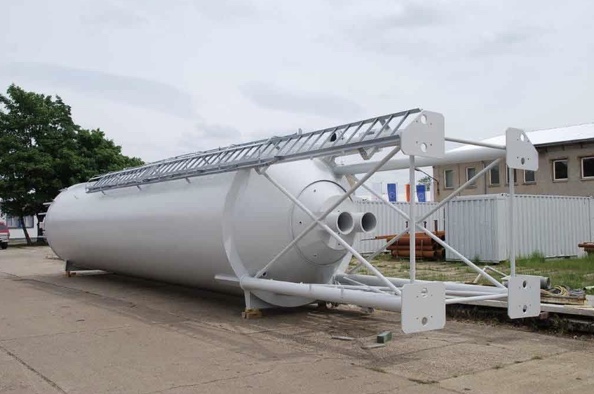

Stahlblechsilo (auch als mobile Version)
ca. 65m3, einzellig
zur Lagerung von Zement oder ähnl. Produkten
Silo Durchmesser: 2.900 mm
Gesamthöhe mit UK: ca. 14207mm
OK Geländer bis OKF
Auslaufdurchmesser: NW 300
Auslaufhöhe: ca. 1980 mm
Achsmaß Silostützen: 2.050 mm

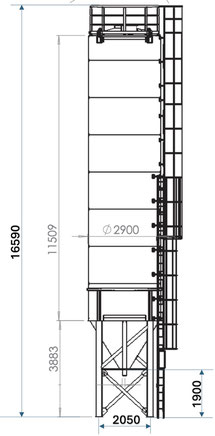

ca. 80m3/ ca. 100 to:
Stahlblechsilo (auch als mobile Version)
ca. 80m3, einzellig
zur Lagerung von Zement oder ähnl. Produkten
Silo Durchmesser: 2.900 mm
Gesamthöhe mit UK: ca. 16590mm
OK Geländer bis OKF
Auslaufdurchmesser: NW 300
Auslaufhöhe: ca. 1900 mm
Achsmaß Silostützen: 2.050 mm
Siloausrüstung und weiterer Service:
(gegen Aufpreis möglich)
- Siloausrüstung
(Filter, Ventile, Zementfüllstand usw.)
- Leiter oder Brücken
- Mobilfundamente
- Lieferung und Montage
As examples, details for an
approx. 65 to or 80 to silo
(our bestsellers)
approx. 65 m3/ approx. 80 tons:
sheet steel silo (also as mobile version)
approx. 65m3, single cell
for storing cement or similar products
Silo diameter: 2900 mm
Total height with substructure:
approx. 14,207 mm
top railing to top floor
Outlet diameter: NW 300
Outlet height: approx. 1980 mm
Axis dimension silo supports: 2,050 mm
approx. 80m3/ approx. 100 tons:
Mobile sheet steel silo
approx. 80m3, single cell
for storing cement or similar products
Silo diameter: 2,900 mm
Total height with substructure:
approx. 16590 mm
top railing to top floor
Outlet diameter: NW 300
Outlet height: approx. 1900 mm
Axis dimension silo supports: 2,050 mm
Silo Equipment and Services:
(by surcharge possible)
- silo equipment
(Filters, Valves, cement level, etc)
- Ladder or brigdes
- Mobil foundations
- Delivery and assembly
